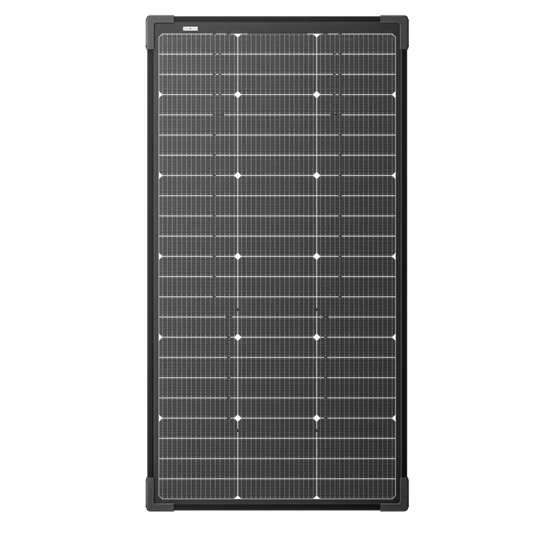

EcoFlow’s 125W bifacial modular solar panel delivers up to 25% efficiency,
seamless plug-and-play scalability, and dependable performance across diverse weather conditions
— a smart choice for long-term residential and outdoor energy solutions.

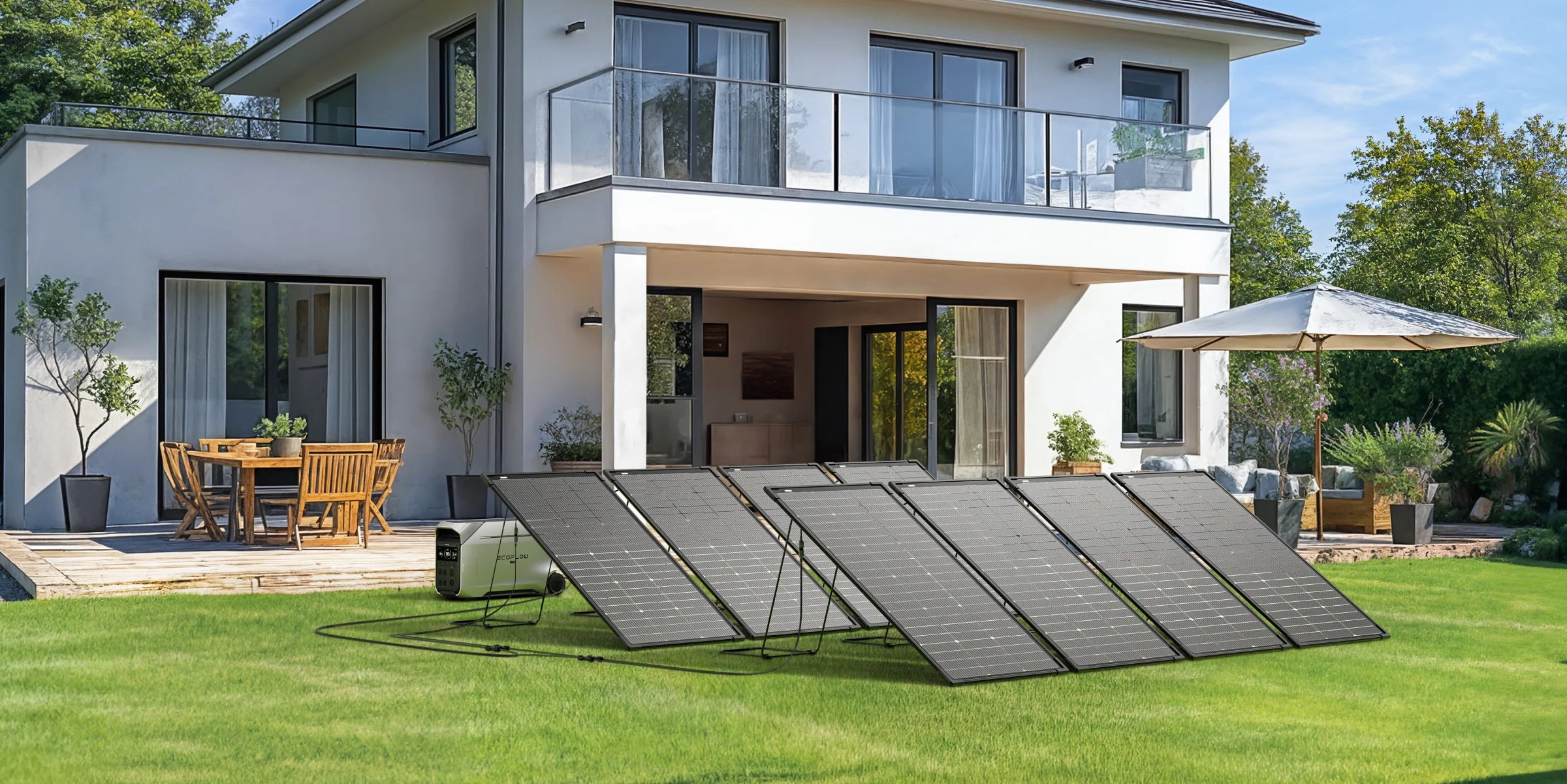

Durable Solar Solution Built to Last

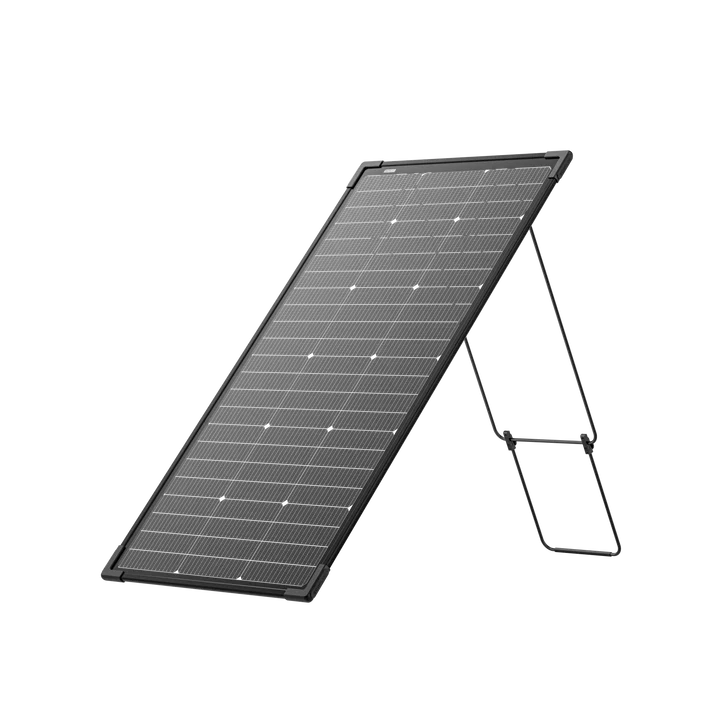

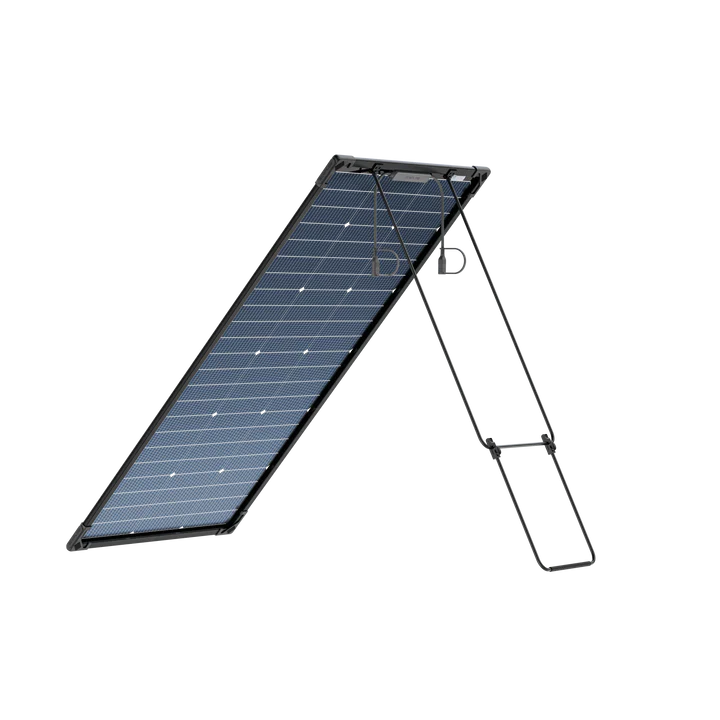

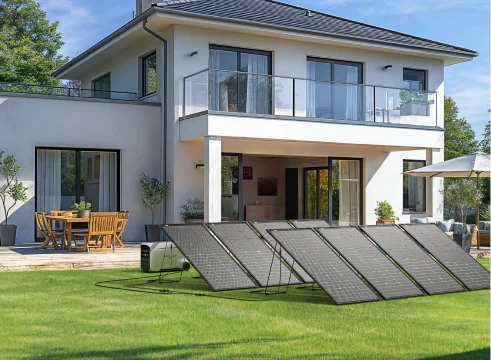

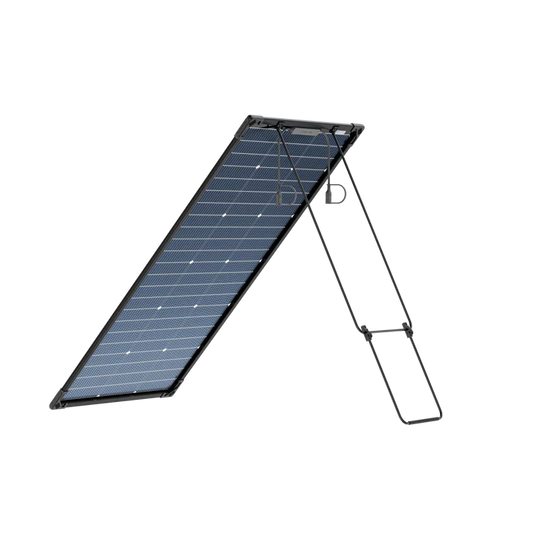

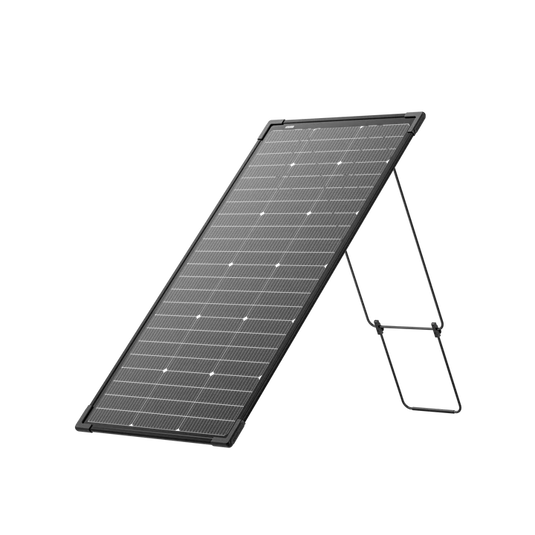

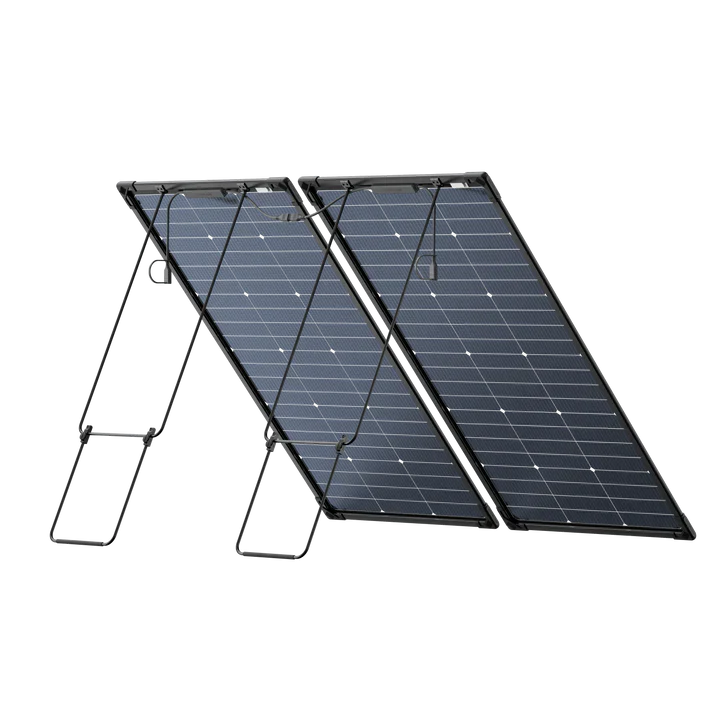

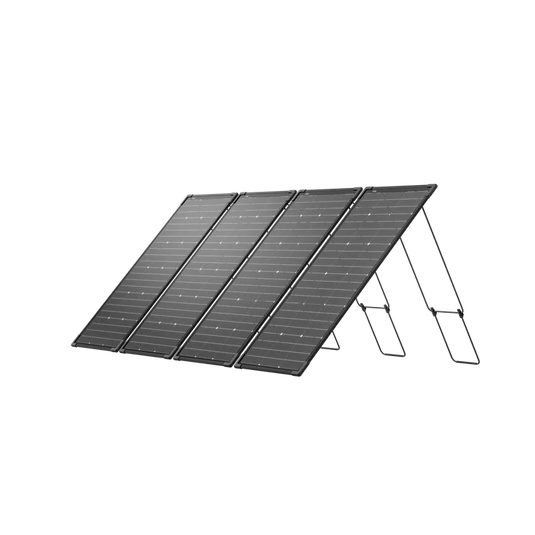

With a lifespan of up to 30 years, this low-maintenance solar panel is built for consistent, long-term use at home. New extension cables make it easy to connect multiple panels in your backyard. Integrated 30-60° adjustable support for optimal solar capture from your garden. The screw-fixation design ensures stability, perfect for long-term outdoor use.

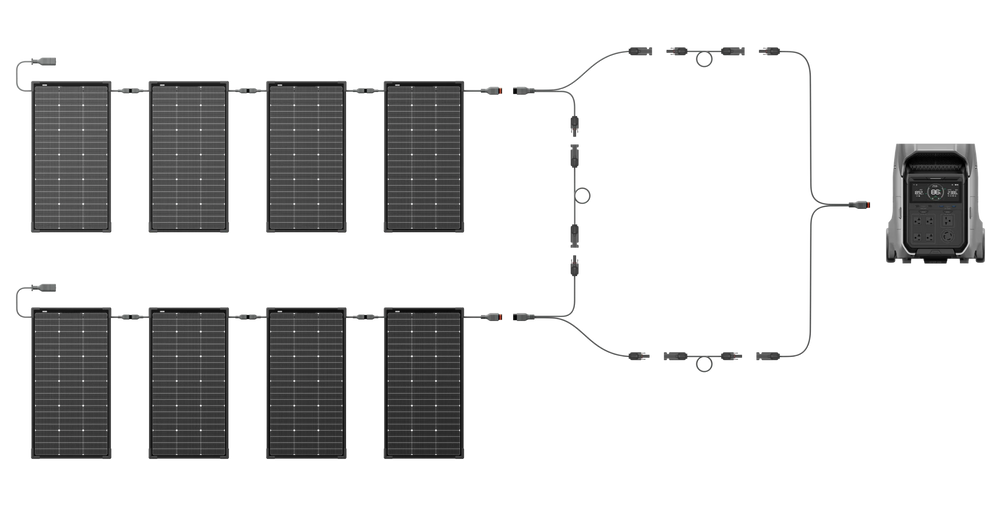

Seamless Expamsion

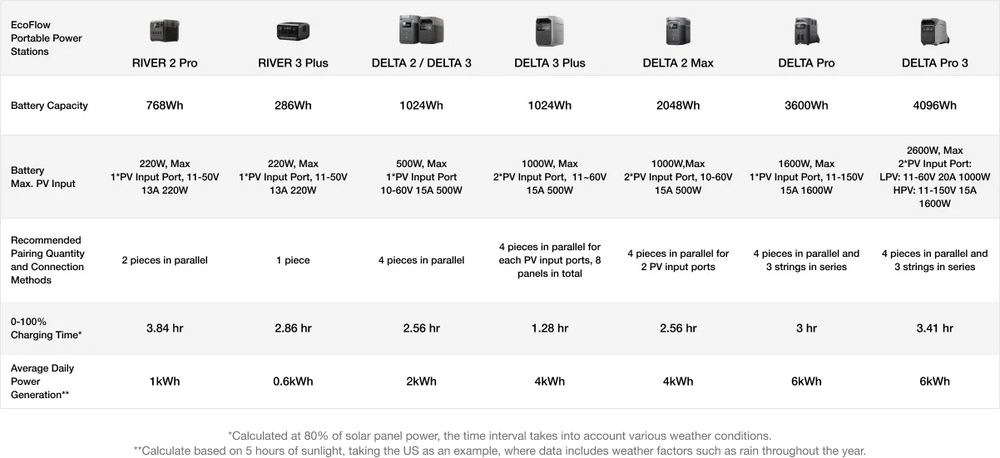

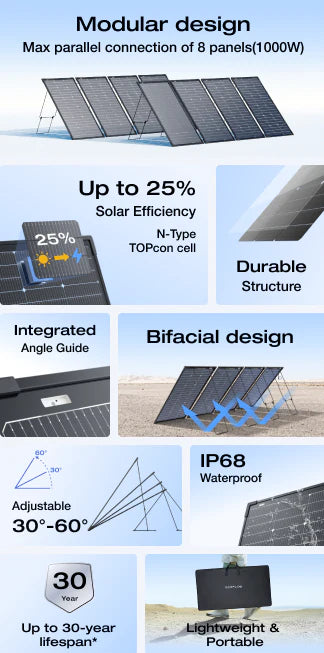

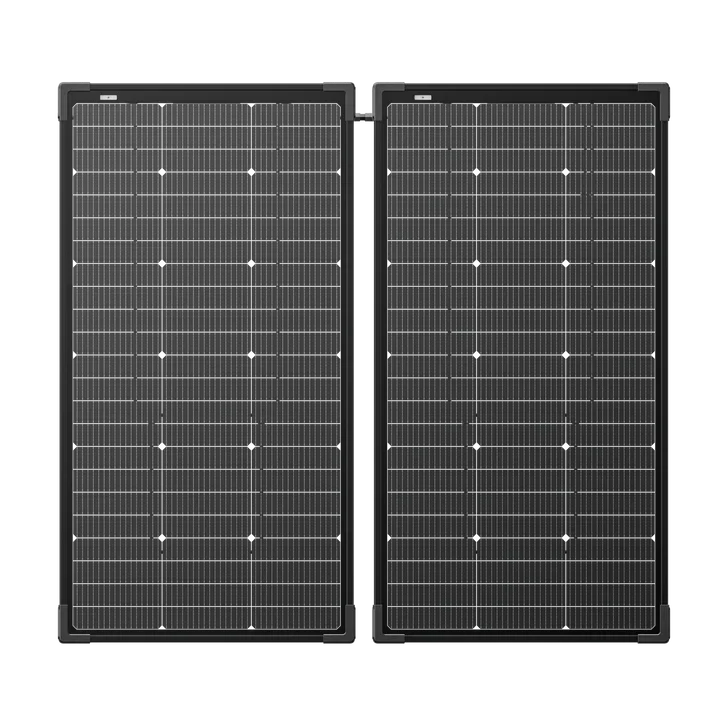

The EcoFlow 125W Bifacial Solar Panel is built with a modular design that delivers 125W of power, 50V voltage, and 3A current output. Within its safe operating range, it offers outstanding adaptability across multiple EcoFlow portable power stations, making it easy to scale your system as your energy needs grow.
Capture More Energy from the Sun

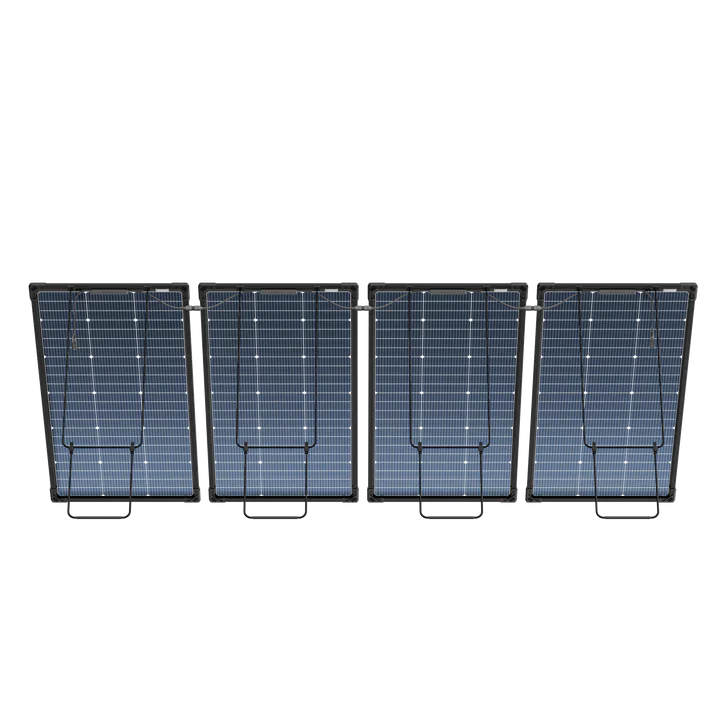

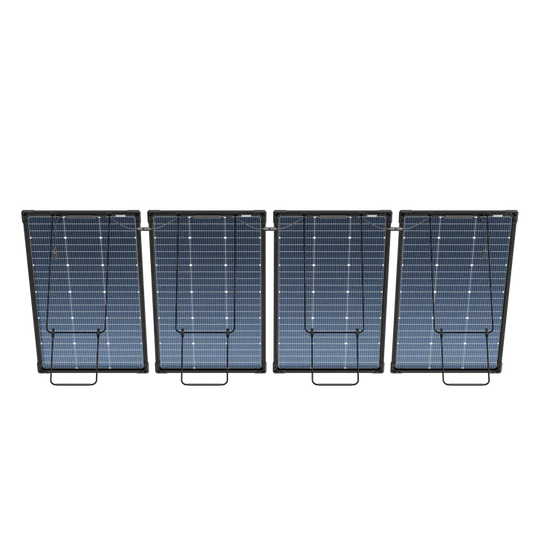

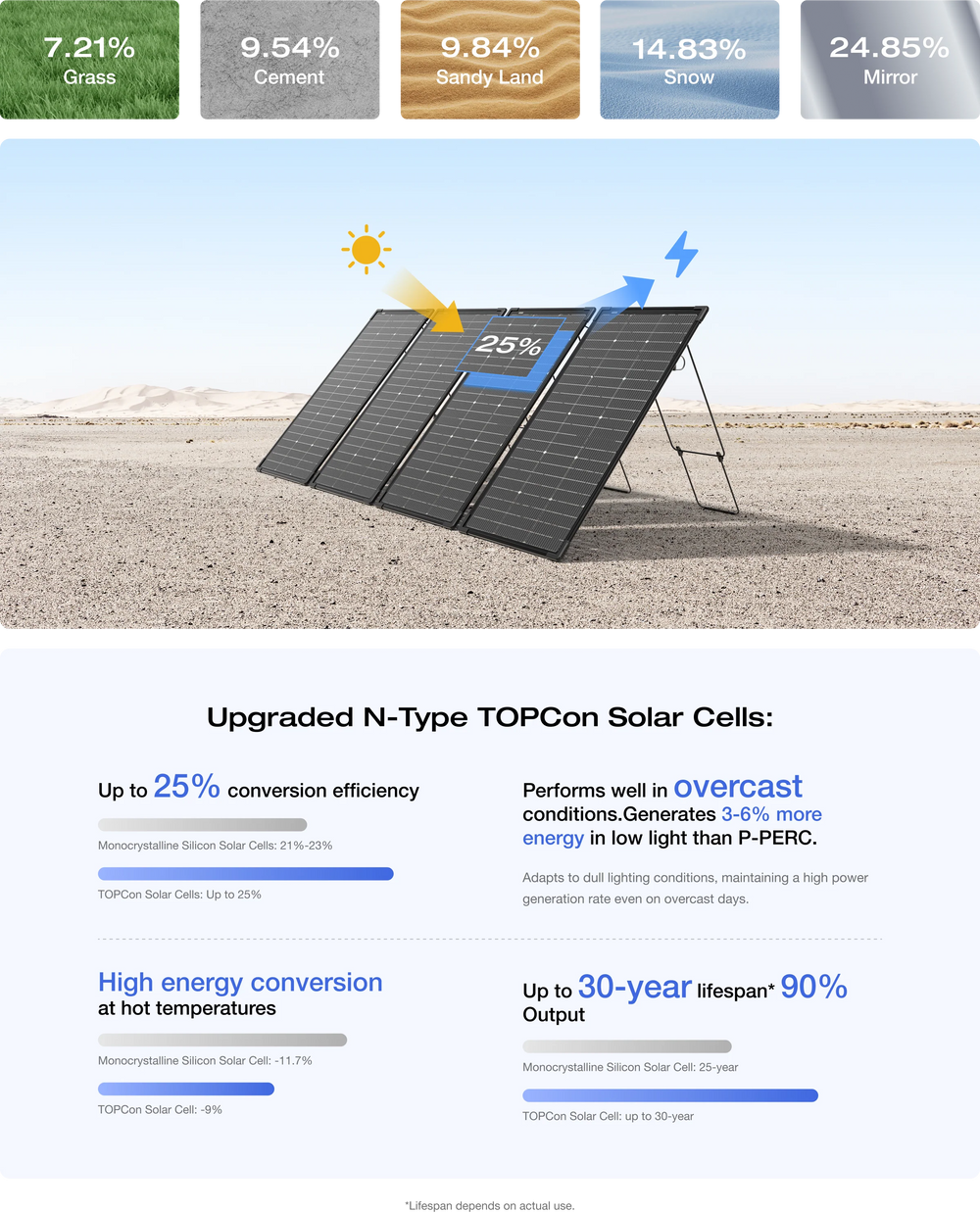

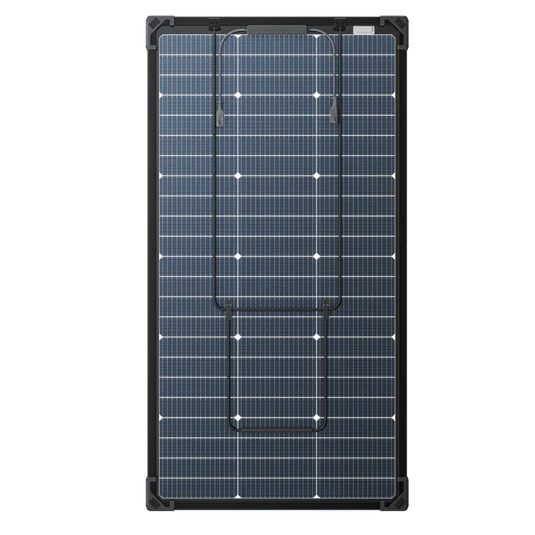

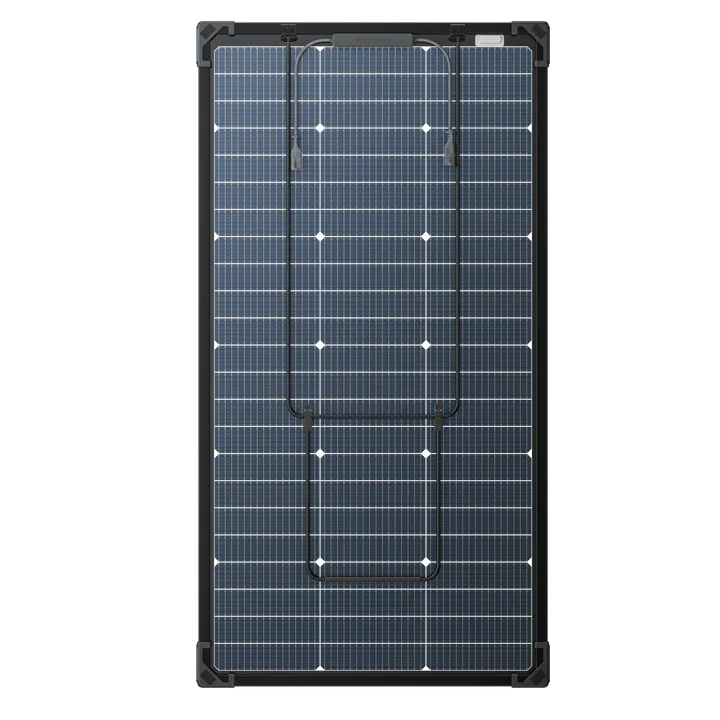

Equipped with N-Type TOPCon technology, the panel achieves conversion efficiency of up to 25%. Its dual-sided design captures additional sunlight, producing a maximum 138W[2] bifacial output for greater energy harvest.
Strong, Weather-Resistant Construction

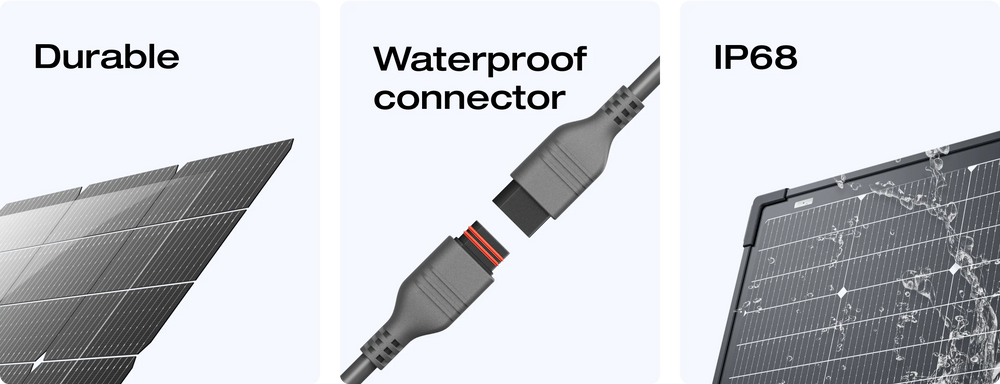

Made with a corrosion-resistant aluminium frame and 1.1mm tempered glass for optimal light transmission, the TOPCon cells are shielded with POE films against UV and moisture, while PET backsheets add durability. Rated IP68 with a waterproof XT60-W connector, the panel delivers reliable, all-weather performance.

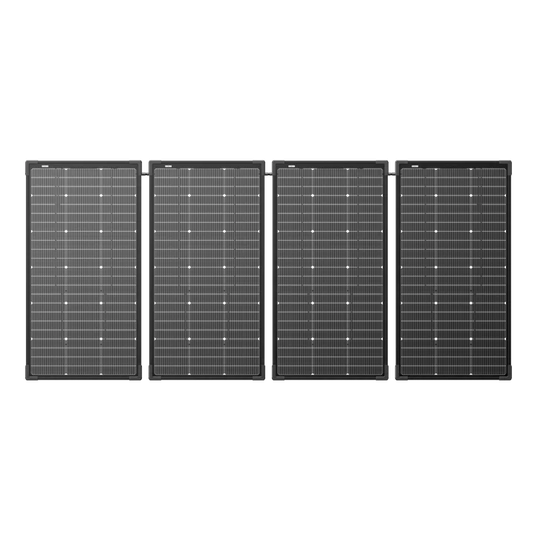

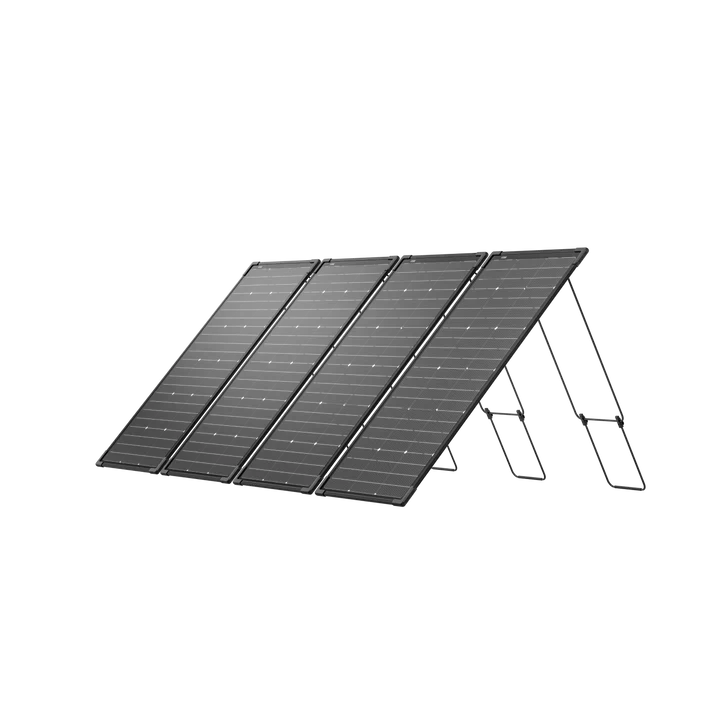

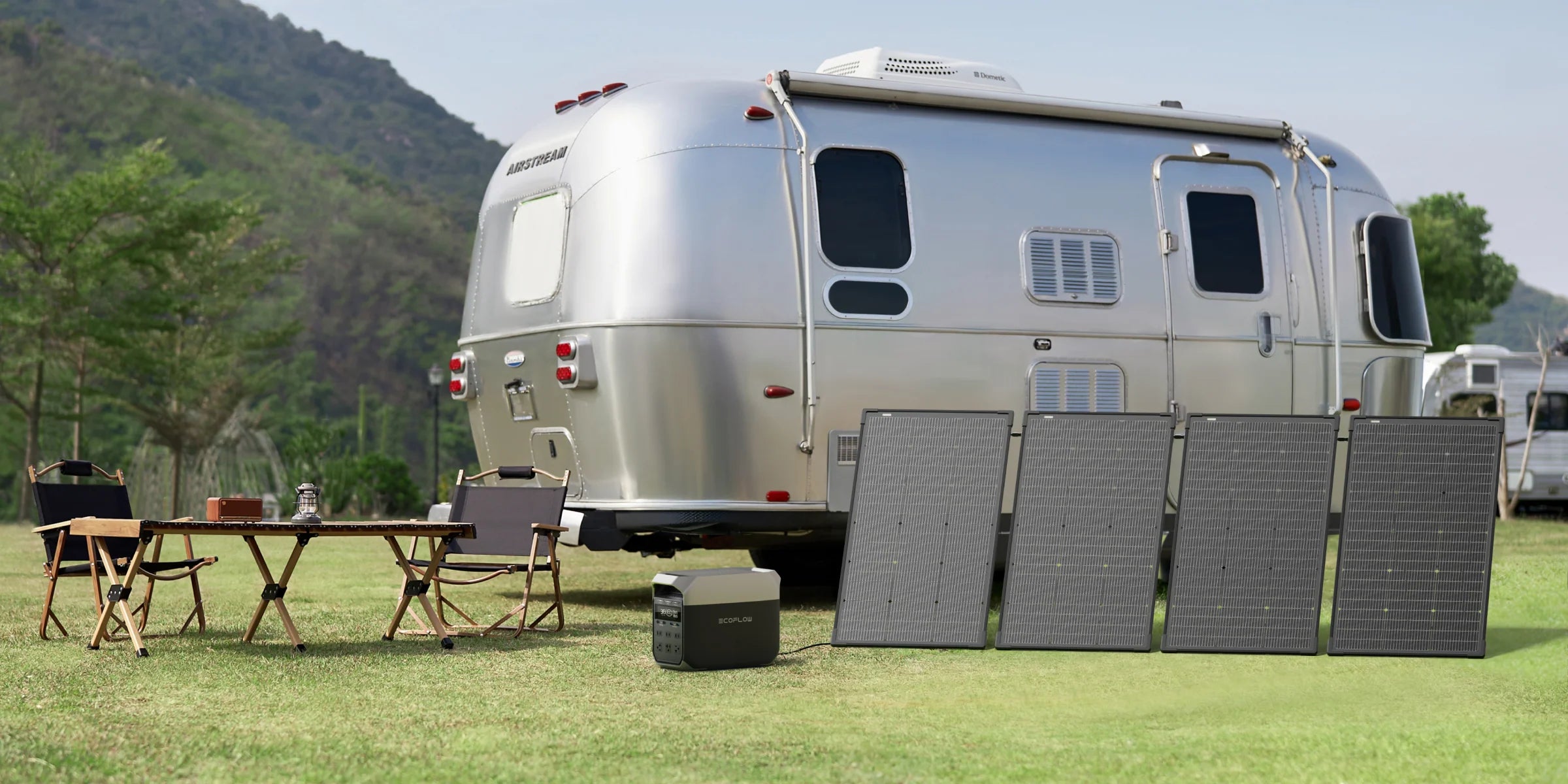

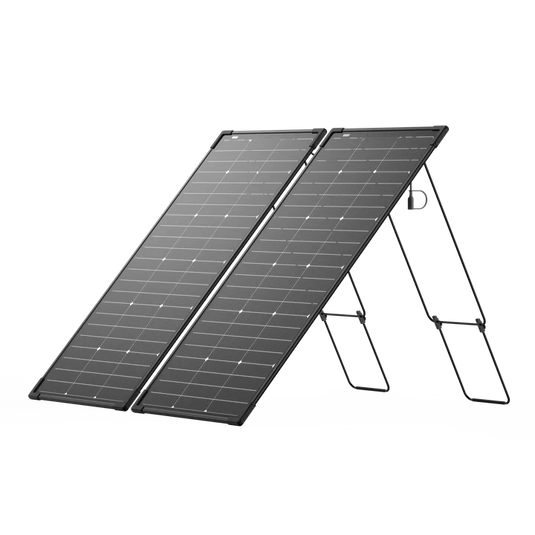

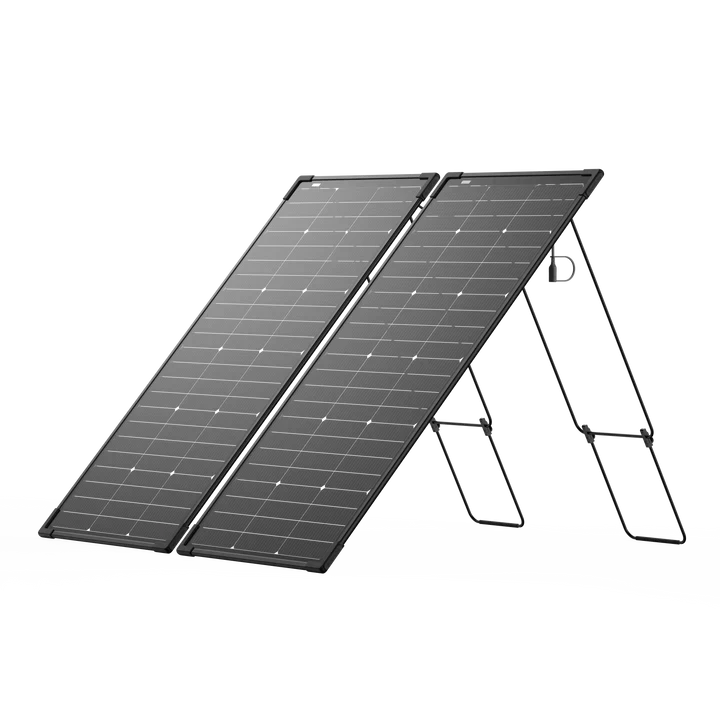

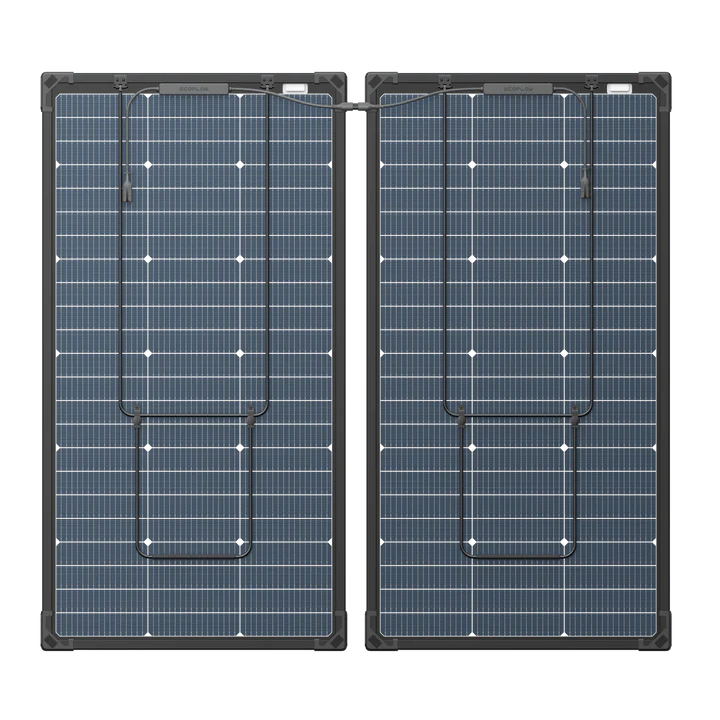

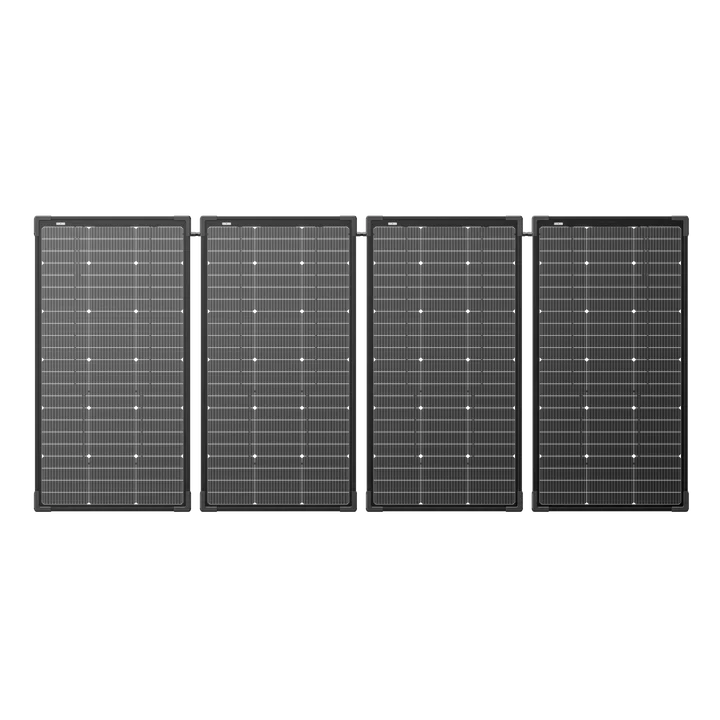

Lightweight, Modular Design for Flexible Power

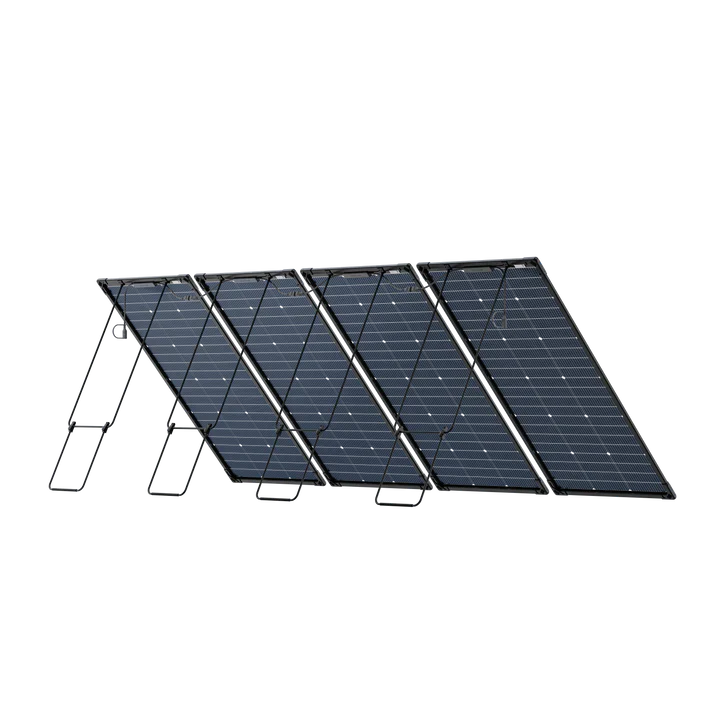

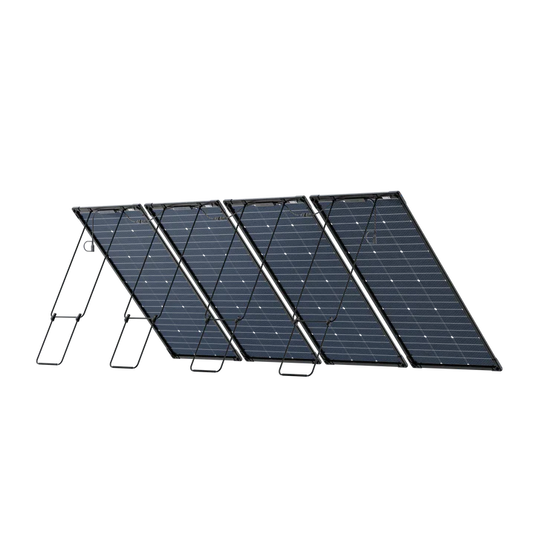

The complete 500W system weighs only 37 lbs (16.8 kg). Its modular design lets you customise power output — use all panels together or separate them for lighter portability. Quick assembly is secured with 3M™ Dual Lock™ Reclosable Fasteners[3], while the included protective case makes carrying and storage simple.
Simple, Safe Plug-and-Play Connection
Easily connect to third-party solar systems with the included MC4-compatible photovoltaic connector[4]. Charge EcoFlow portable power stations and other systems using waterproof XT60 connectors, designed with touch-safe, anti-leak features for dependable operation.
Specs
Rated Power
STC 125W (±3W) BNPI 138W (±3W)
Open Circuit Voltage
50V
Short Circuit Current
STC 3.2A BNPI 3.4A
Optimal Operating Voltage
43V
Optimal Operating Current
STC 3ABNPI 3.2A
Recommended Ambient Temperature
-40°C to 85°C
Efficiency
25%
Bifaciality Coefficients
80%±5%
Weight
Approx. 4.2kg
Dimensions (L×W×H)
612×1154×22 mm
Maximum System Voltage
600V DC (IEC/UL)
Cell Type
TOPCon monocrystalline silicon
Connector Type
XT60
Waterproof & Dustproof Rating
Solar Panel IP68 XT-60 Connector IP68
Warranty
5 Years
Lifespan
30 years, 90%
Footnotes:
[1] Tested under optimal conditions.
[2] The maximum combined power output of the 125W bifacial panel is 138W. Under the same lighting conditions, the bifacial panel can generate up to 10% more power on the rear side compared to a single-sided panel, calculated as (138-125)/125 * 100% = 10.4%.
[3]The term "3M" and "dual lock" are both trademarks belonging to the 3M Company, also known as the Minnesota Mining and Manufacturing Company.

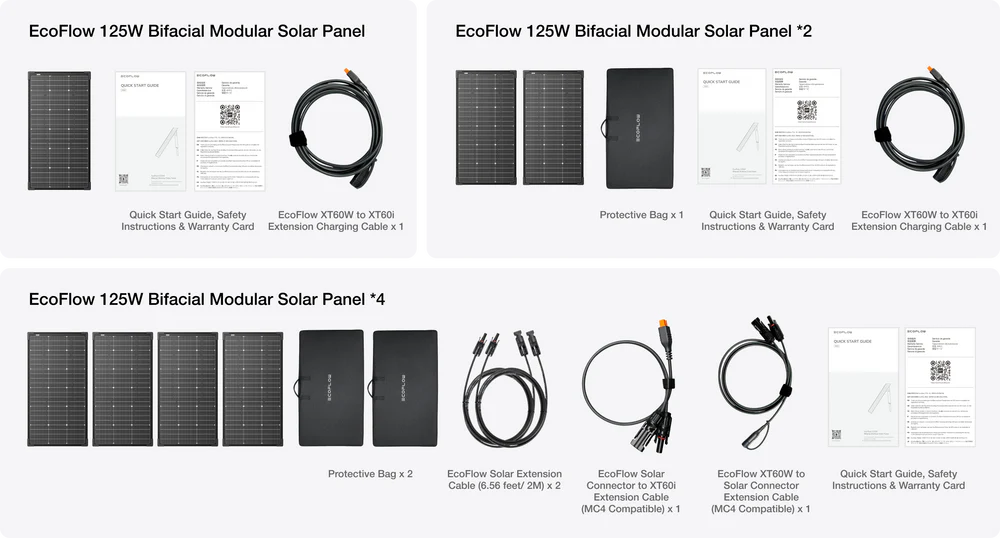

[4] Included with the 500W (125W × 4) bifacial modular solar panel set.
